Блокирующая гайка

OMSномер форсункиразмерыПояснение
Denso

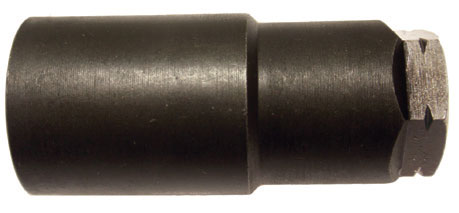

02-04-210
6C1Q-9K546-AC, 095000-5800, 6C1Q-9K546-BC, 095000-7060, 8-98011604-5, 095000-6980, 1465A054, 095000-5760, 1465A041, 095000-5600, R2AA13H50, 295050-0010, 16600-AW40#, 16600-BN80#, 095000-5130, 095000-5180, 16600-EC00#, 16600-EB30#, 095000-6250, 095000-5650, 16600-ES60A, 095000-6020, 16600-MB40#, 095000-6240, 16600-AU600, 095000-0880, 8-97353080-0, 095000-5830, RE501010, 095000-0550, 23670-51041, 095000-9770, D28-001-801+C, 095000-6790, 33800-4570, 095000-5550, 095000-831 Est. 19,2 mm Lungh. 42,1 mm Ch. 14 /M17x0,5 Foro ? 9,6 mm
Denso

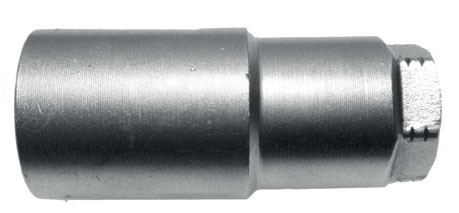

02-04-233
23670-30280, 095000-778, 095000-829, 095000-592, 23670-30281, 23670-39315, 23670-39316, 23670-09330, 23670-09070, 23670-30220 095000-741, 23670-39215, 23670-30140 095000-676, 23670-39185, 095000-703, 23670-30320095000-773, 095000-736, 095000-687, 095000-574, 095000-589, 23670-39295, 23670-30210, 23670-39155, 23670-30180, 23670-30080, 23670-39135, 23670-30300, 095000-776, 23670-09360, 095000-874, 23670-39275, 23670-30100, 095000-619, 23670-30240, 095000-739, 095000-775, 23670-0L070, 23670-0L011, 23670-39235, 23670-0L010 095000-552, 23670-09060 095000-593, 23670-30310, 095000-780, 23670-39285, 23670-30250, 095000-743, 23670-39245, 23670-30150, 095000-677, 23670-39145, 095000-704, 23670-51030, 095000-770, 23670-59035, 095000-771, 23670-51020A, 095000-673, 23670-59025, 095000-753, 23670-0R180, 095000-769, 23670-09270, 23670-0R130, 095000-733, 23670-09230, 23670-0R050, 095000-668, 23670-09190, 095000-697, 23670-09380, 23670-0L110, 23670-30420, 295050-081, 23670-0R170 095000-764, 23670-09290, 23670-0R120 095000-728, 23670-09210, 23670-0R070 095000-691, 23670-09210, 23670-0R020 095000-604, 23670-09140 095000-623, 23670-0R190 095000-767, 23670-09280, 23670-0R140, 095000-731, 23670-09240, 23670-0R030, 095000-641, 23670-09180, 095000-696, 23670-0R010, 095000-5600, 23670-30140, 095000-576, 23670-0R050, 095000-513, 23670-30300, 095000-602, 23670-30280 , 095000-053 Est. 19,2 mm
Lungh. 42,5 mm
Ch. 14 / M17x0,5
Foro ? 9,6 mm
Denso
02-04-211

8-97313861-2, 095000-0570, 8-97376270-1 095000-6130, 23670-27030, 095000-0570, 8-97239161-7, 095000-0360, 23670-79026, 23670-E0091, 095000-6520, 23670-27030, 095000-0570, 23670-29035, 095000-0420, 23670-27020, 095000-043, 23670-29025, 095000-064, 23670-30030, 095000-077, 23670-30040, 095000-063, 23670-39035, 095000-094, 23670-39045, 095000-0950

Est. 19,2 mm
Lungh. 43 mm
Ch. 14 / M17x0,5
Foro ? 9,6 mm

Denso

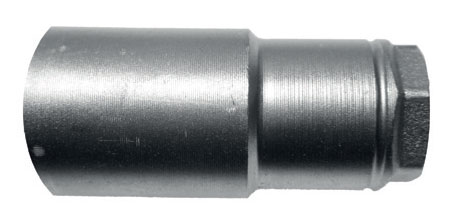

02-04-197

23670-27030, 095000-0530, CA6DL-32, 095000-6220, 23670-30010, 095000-0520, 23670-30020 095000-0530, 23670-39015, 095000-0740, 23670-39025, 095000-0750

Est. 19,2 mm
Lungh. 41,6 mm
Ch. 14 / M17x0,5
Foro ? 9,6 mm

Denso

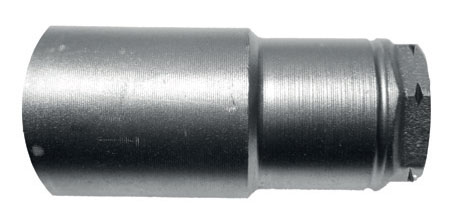

02-04-234

RF5C13H50A, 095000-5030, 095000-7850, RF7J13H50, 095000-5780, 16613AA020, 095000-7890

Est. 19 mm
Lungh. 42 mm
Ch. 14 / M17x0,5Foro ? 9,6 mm

Denso

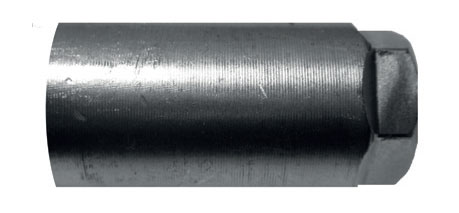

02-04-235

8-97376270-1, 095000-6130, 8-97313861-2, 095000-5080, 8-973138612, 8-973762701

Est. 17 mm
Lungh. 33,5 mm
Ch. 14 / M15x0,5
Foro ? 9,6 mm
Denso Piezo

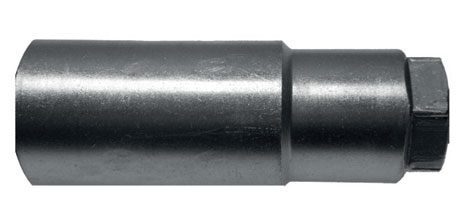

02-04-236

23670-0R040

Est. 19,2 mm
Lungh. 51,5 mm
Ch. 14 / M17x0,5
Foro ? 10 mm
Bosch

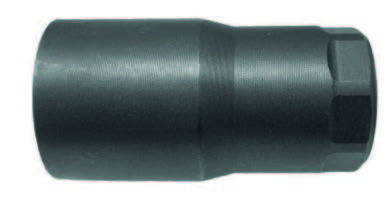

02-04-196
F 00V C14 016 Est. 19 mm
Lungh. 35 mm
Ch. 16 / M17x0,75
Foro Ш 9,6 mm
Bosch

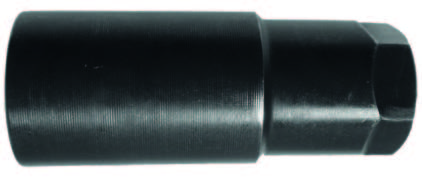

02-04-217
0 445 115 037, 0 445 115 067 Es. 15 mm
Lungh. 46 mm
M17x0,75
Foro Ш 9,6 mm
Bosch
02-04-218
F 00R J02 168 Ch. 15
Lungh. 34,7 mm
M19x0,75
Foro Ш 9,6 mm
Bosch
02-04-219
F 00R J02 552 Ch. 19
Lungh. 34,5 mm
M19x0,75
Foro Ш 9,6 mm
Bosch
02-04-056
F 00V C14 010, F 00V C14 018 Est. 17 mm
Lungh. 31 mm
Ch. 15 / M15x0,5
Foro Ш 9,6 mm
Bosch
02-04-192
F 00R J00 001, F 00R J00 842, F 00R J02 552 Est. 21 mm
Lungh. 34,7 mm
Ch. 19 / M19x0,75
Foro Ш 9,6 mm
Bosch
02-04-149
F 00V C14 012, F 00V C14 013 Est. 19 mm
Lungh. 35,1 mm
Ch. 15 / M17x0,75
Foro Ш 9,5 mm
02-04-193 F 00R J00 841 Est. 21 mm
Lungh. 36,2 mm
Ch. 15 / M19x0,75
Foro Ш 9,6 mm
Bosch
02-04-190
F 00V C14 015, F 00V C14 019 Est. 18,9 mm
Lungh. 37 mm
Ch. 17,5/M17x0,75
Foro Ш 9,6 mm
Bosch
02-04-194
F 00R J01 208, F 00R J01 152, F 00R J00 295 Est. 17 mm
Lungh. 30,8 mm
Ch. 15 / M15x0,5
Foro Ш 9,9 mm
Bosch

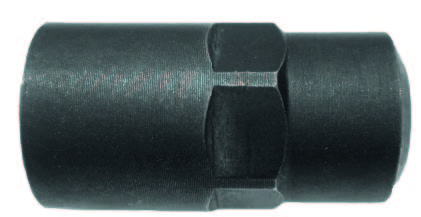

02-04-191
F 00R J00 422, F 00R J00 843, F 00R J01 101 Est. 18,8 mm
Lungh. 34,7 mm
Ch. 17 / M17x0,75
Foro Ш 9,6 mm
Bosch
02-04-195
F 00R J02 219, F 00R J00 713, F 00R J00 337 Est. 20,8 mm
Lungh. 34,7 mm
Ch. 15 / M19x0,75
Foro Ш 9,6 mm
Bosch
02-04-223
1 410 497 036 Est. 18. 7 mm Lungh. 31,6 mm M17x0,75 Foro ? 8,9 mm
Bosch
02-04-224
1 410 497 038 Ch. 29 Lungh. 27,4 mm M25x0,75 Foro ? 17,8 mm
Bosch
02-04-225
1 410 497 042 Est. 21,6 mm Lungh. 65 mm M23x1 Foro ? 9,6 mm
Bosch
02-04-226
1 410 497 014 -
Bosch

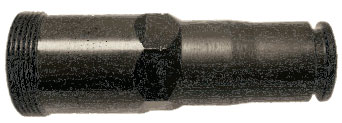

02-04-227
1 410 497 047 -
Delphi
02-04-202
9308-002C Est. 17 mm Lungh. 41 mm Ch. 15 / M15,3x0,5 Foro ? 9,9 mm
Delphi
02-04-203
9308-002D Est. 17 mm Lungh. 41 mm Ch. 15 / M15,3x0,5 Foro ? 9,9 mm
Delphi
02-04-231
9308-002E Est. 17 mm Lungh. 41 mm Ch. 15 M15.3x0,5 Foro ? 9,9 mm
Delphi
02-04-232
9308-002F Est. 17 mm Lungh. 39,4 mm Ch. 15 M15,3x0,5 Foro ? 9,9 mm
